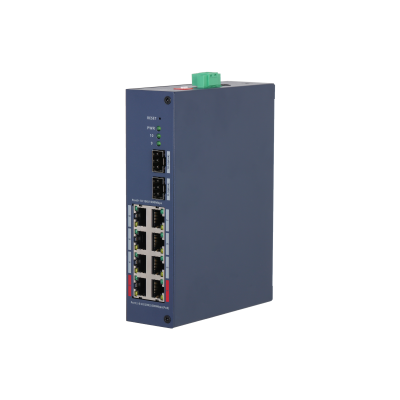

Dahua CHS4210-8GT-110 8 Port Gigabit PoE 2 Port SFP 110W Cloud Yönetilebilir Edüstriyel PoE Switch

Ürün Açıklaması

Dahua CHS4210-8GT-110 8 Port Gigabit PoE 2 Port SFP 110W Cloud Yönetilebilir Edüstriyel PoE Switch BasicLayerLayer 2Switching Capacity20 GbpsPacket Forwarding Rate14.88 MppsDescription of Function SlotsPort 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)Port 9-10: 2 × SFP 100/1000 Mbps (uplink)Operating Temperature–30 °C to +65 °C (–22 °F to +149 °F)Operating Humidity10%–90% (RH), non-condensingProtectionIP30; IK06Storage Temperature–40 °C to +85 °C (-40 °F to +185 °F)Storage Humidity5%–95% (RH), non-condensingPower SupplyExternal dual power supply (terminal block and DC): 48–57 VDC, 2.5–2.1 APower ConsumptionIdling: 2 WFull load: 116.6 WStatics ProtectionAir discharge: 8 kVContact discharge: 6 kVLightning ProtectionCommon mode: 4 kVDifferential mode: 2 kVNet Weight0.66 kg (1.46 lb)Gross Weight1.6 kg (3.53 lb)Product Dimensions171.8 mm × 139.4 mm × 42 mm (6.76" × 5.49" × 1.65") (L × W × H)Packaging Dimensions314.5 mm × 253.5 mm × 130.5 mm (12.38" × 9.98" × 5.14") (L × W × H)Casing MaterialIronInstallationDIN rail mount; desktop mountCertificationsCEPoEPoEYesPoE PowerPort 3-8≤30 W, port 1–2≤90 W, total≤110 WPoE ProtocolIEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3btPoE Power Consumption ManagementPoE power consumption management; PoE power on/off; turns off PoE if overload is detected; Green PoEPoE Pin Assignment1,2,4,5 (V+),3,6,7,8 (V-)Long Distance PoE TransmissionYesHardwareDIP SwitchManaged mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default.Extend mode: The transmission distance of ports 1–8 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.PoE Watchdog: Monitors the flow of data traffic for ports 1–8. If PoE fails for any of the ports and there is no traffic for 2 minutes, the failed ports will be restarted.Reset Button1PerformanceMTBF846,267 hoursPacket Buffer Size8.4 MbitJumbo Frame12288 ByteMAC Table Size8KCommunication StandardIEEE 802.3; IEEE 802.3u; IEEE 8...
