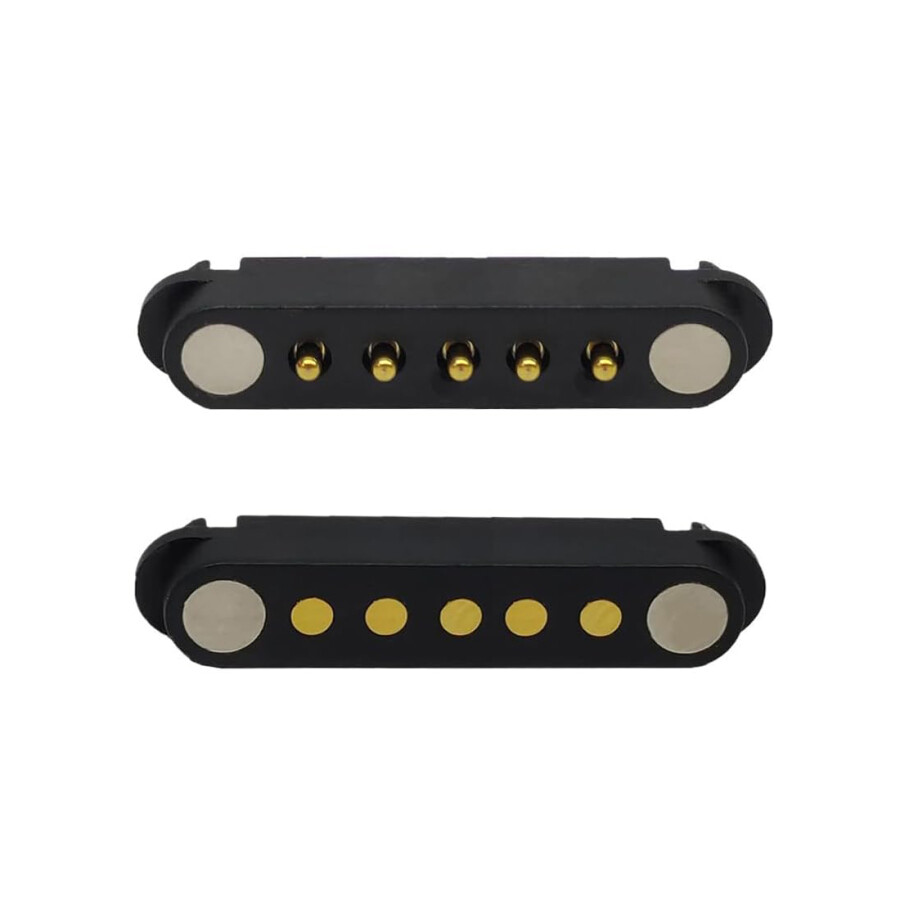

Pogo pin waterproof Type, 5Pin 2.5mm, T/L 3mm

Ürün Açıklaması

303C-C3018-25-05 ATTEND POGO PIN Pogo Pin Water proof Kontak Tipi, 5Pin Aralık 2.5mm T/L 3.0mm DIP w/o Cap A pogo pin or spring-loaded pin is a Tip of electrical connector mechanism. The conducting surface is gold plated which provides great corrosion resistance, enhances its mechanical strength and electrical conductivity. Pogo pin combines the advantages of fine Aralık, high current, and long lifetime that can be widely used in industrial, medical, and consumer applications. Conclusion High Stroke High Durability Long Lifetime Ease of Attaching Stable Current Flow Application: Antenna Board To Board Connection Medical Device Tracking Device Portable Device 303C-541219-25-05 ATTEND - Pogo Pin Water proof Tip, 5Pin Aralık 2.5mm T/L 6.6mm W/H 5.4mm DIP w/o Cap ELECTRICAL Current Rating 2A per pin Voltaj Değeri Voltaj Değeri 12V AC/DC Contact Resistance 50mΩ Insulation Resistance 100MΩ Dielectric Withstanding Voltage 500VAC MECHANICAL Durability 20,000 Cycles ENVIRONMENTAL Çalışma Sıcaklığı range -40°C~+85°C Storage temperature range -40°C~+85°C Waterproof Level IPX7 SOLDER ABILITY Recommended IR Reflow Temperature 250°C, 10Sec Product Specification Comparison Table Variation Pin Count Total Height Current Rating Single 1 Ping 3.4 - 10.5 mm 1 - 2A Multiple 2 - 4 Pin 5 - 7.5 mm 1 - 2A WaterProof 5 Pin 5.4mm 1 - 2A
